MCX-JW3




Electrical Performance
Parameter Value
Article No.型号 MCX-JW3
Frequency range频率范围 0 ~ 6GHz
Impedance特性阻抗 50Ω
VSWR电压驻波比 ≤1.30
Withstanding Voltage耐压 750V
Insulation resistance绝缘电阻 1000MΩ
Connector Type接口 MCX-male interface
Standard引用标准 IEC60169-4

Mechanical Performance
Parameter Value
Waterproof degree防水等级 NO
Moisture resistance抗湿性 NO
Mating cycles插拨次数 ≥500

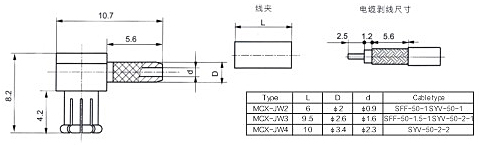

Outer Dimension外观尺寸 8.2*10.7*6mm

Environment Performance
Parameter Value
Operating temperature range工作温度 -65℃~+165℃
Storage temperature range储存温度 -30℃~+60℃

Material &Plating
Connector parts Material Plating
Center conductor中心导体 Brass 镀金
Outer conductor外导体 Brass Silver镀金
Dielectric介质 PTFE /
Salt Mist盐雾   48H

Packing
Standard包装要求 5000pc/plastic bag in separate carton
Remark:Dimensions are in mm with tolerance of ±2%.
