Electrical Performance
|
Parameter |
Value |
|
Article No.型号 |
F-75J RG59-22 |
|
Frequency range频率范围 |
2~2150MHz |
|
Impedance特性阻抗 |
75±1.5Ω |
|
Return loss回波损耗 |
≤-20dB |
|
Withstanding Voltage耐压 |
1000V |
|
Standing wave ratio电压驻波比 |
≤1.5dB |
|
Connector Type接口 |
F connector male interface |
|
Standard引用标准 |
IEC60169-4 |
Mechanical Performance
|
Parameter |
Value |
|
Waterproof degree防水等级 |
NO |
|
Moisture resistance抗湿性 |
NO |
|
Mating cycles插拨次数 |
≥500 |
|

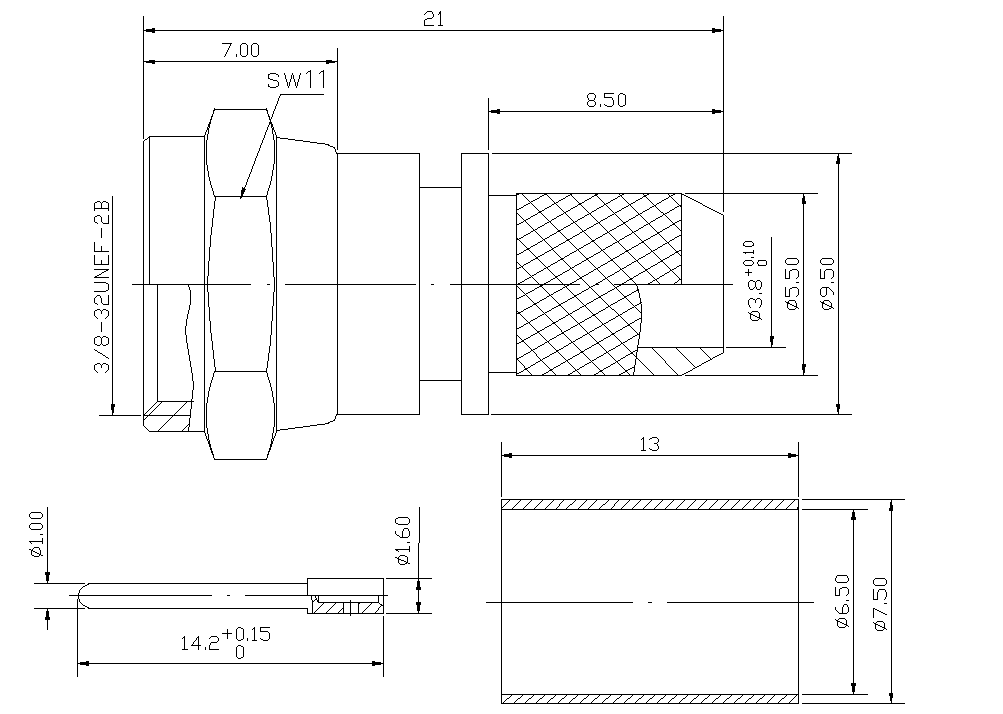

Outer Dimension外观尺寸 |
21*13mm |
Environment Performance
|
Parameter |
Value |
|
Operating temperature range工作温度 |
-40℃～+70℃ |
|
Storage temperature range储存温度 |
-30℃～+60℃ |
Material &Plating
|
Connector parts |
Material |
Plating |
|
Center conductor中心导体 |
Brass |
镀金 |
|
Outer conductor外导体 |
Brass |
Nickeling 镀镍 |
|
Dielectric介质 |
PTFE |
/ |
|
Salt Mist盐雾 |
|
48H |
|
Weight重量 |
|
8g |
Packing
|
Standard包装要求 |
2000pc/plastic bag in separate carton |
Remark：Dimensions are in mm with tolerance of ±0.10
